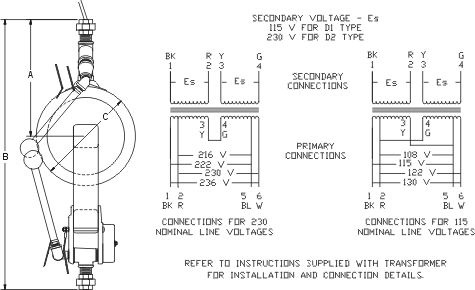

Dimensions
|
|
|
| |
| Rating
kVA |
A |
B |
C |
Pipe
Fittings |
Connecting
Colour Code |
|
0.7 & 1.7
|
15"
381 mm |
33 3/4"
857 mm |
12 1/2"
318 mm |
1" NPT |
BK Black #1
R Red #2
Y Yellow #3
G Green #4
BL Blue #5
W White #6
|
| 2.5 |
24 1/2"
622 mm |
61"
1,549 mm
|
25"
635 mm |
1 1/2" NPT |
| 3.5 |
18 3/4"
476 mm |
43"
1,092 mm |
16"
406 mm |
1 1/2" NPT |
| 5.0 |
24 1/2"
622 mm |
61"
1,549 mm |
25"
635 mm |
1 1/2" NPT |
| Transformer
Type |
Capacity
kVA |
Secondary
Voltage |
Net
Weight |
RF
Dry Flashover
kV rms. |
RF
Wet Withstand
kV rms. |
| lb. |
kg |
|
A-07D1
|
0.7 |
115/230 |
70 |
32 |
46 |
15 |
| A-07D2 |
0.7 |
230/460 |
70 |
32 |
46 |
15 |
| A-17D1 |
1.7 |
115/230 |
90 |
41 |
46 |
15 |
| A-17D2 |
1.7 |
230/460 |
90 |
41 |
46 |
15 |
| A-25D1 |
2.5 |
115/230 |
350 |
159 |
71 |
37 |
| A-25D2 |
2.5 |
230/460 |
350 |
159 |
71 |
37 |
| A-35D1 |
3.5 |
115/230 |
190 |
86 |
60 |
24 |
| A-35D2 |
3.5 |
230/460 |
190 |
86 |
60 |
24 |
| A-50D1 |
5.0 |
115/230 |
370 |
168 |
71 |
37 |
| A-50D2 |
5.0 |
230/460 |
370 |
168 |
71 |
37 |
|
|
|
| |
Austin Ring transformers offer the following benefits:
- Air Insulation - Minimum R.F. loss
- Low Capacitance - Minimum and stable effect
on tuning
- Regulation - Better than 10% under normal load
conditions
- Efficiency - Better than 90% under normal load
conditions
- Mounting - Standard pipe unions supplied
- Lightning Gap - Supplied as standard
Special transformer mounting kits are available to directly
mount the austin transformers onto austin base insulators.
|
|
|
| |
|
|
|
| |
